Description

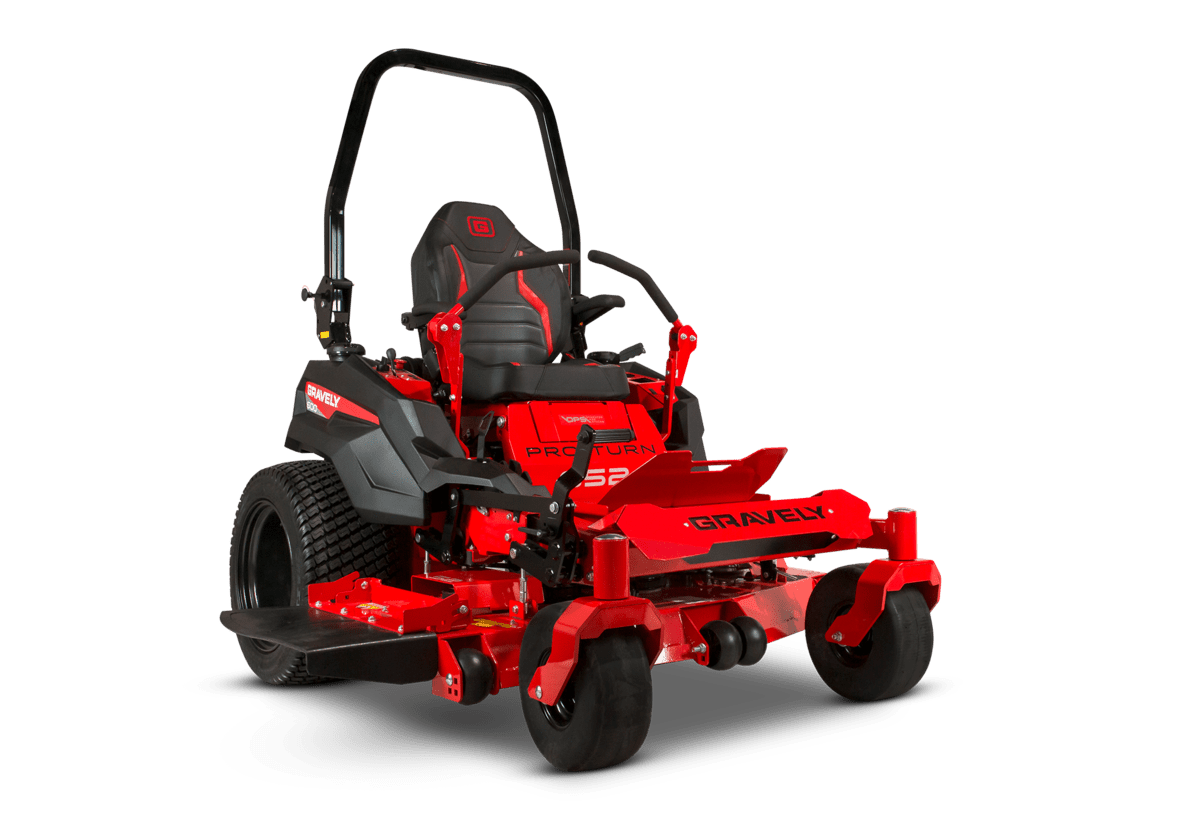

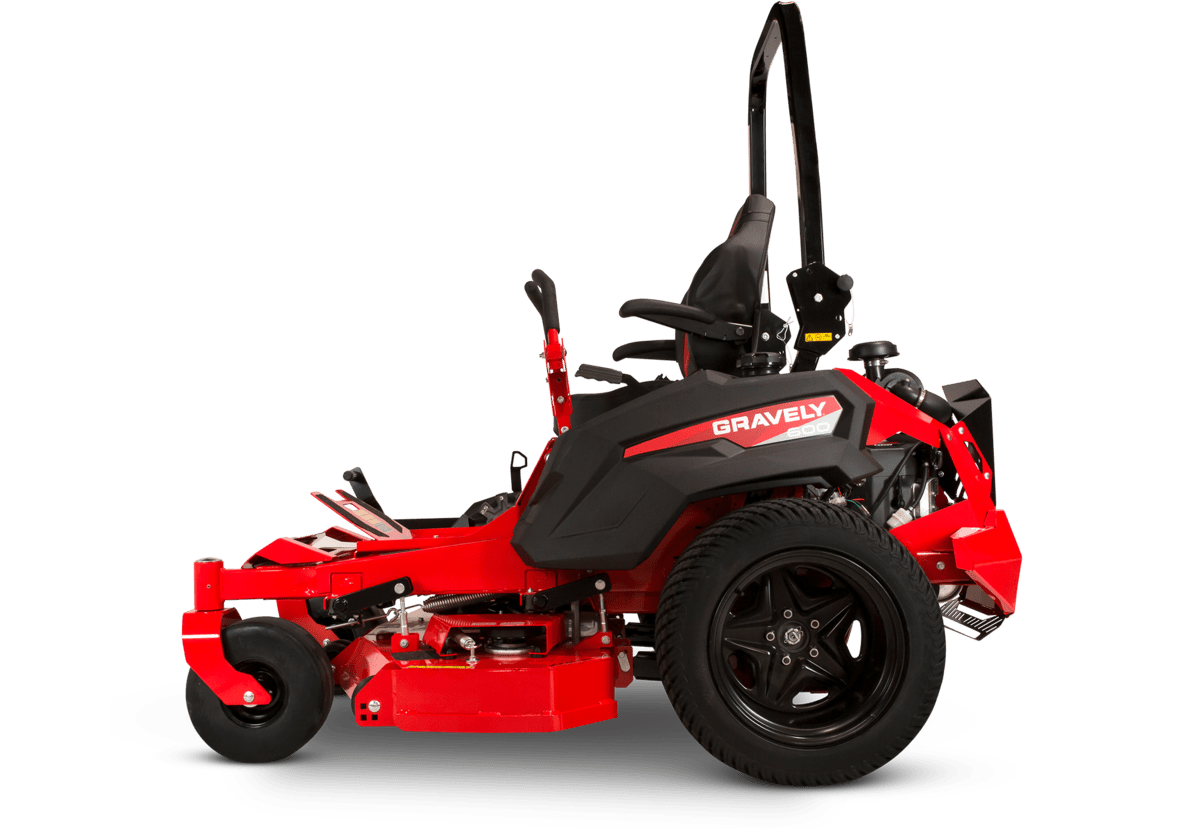

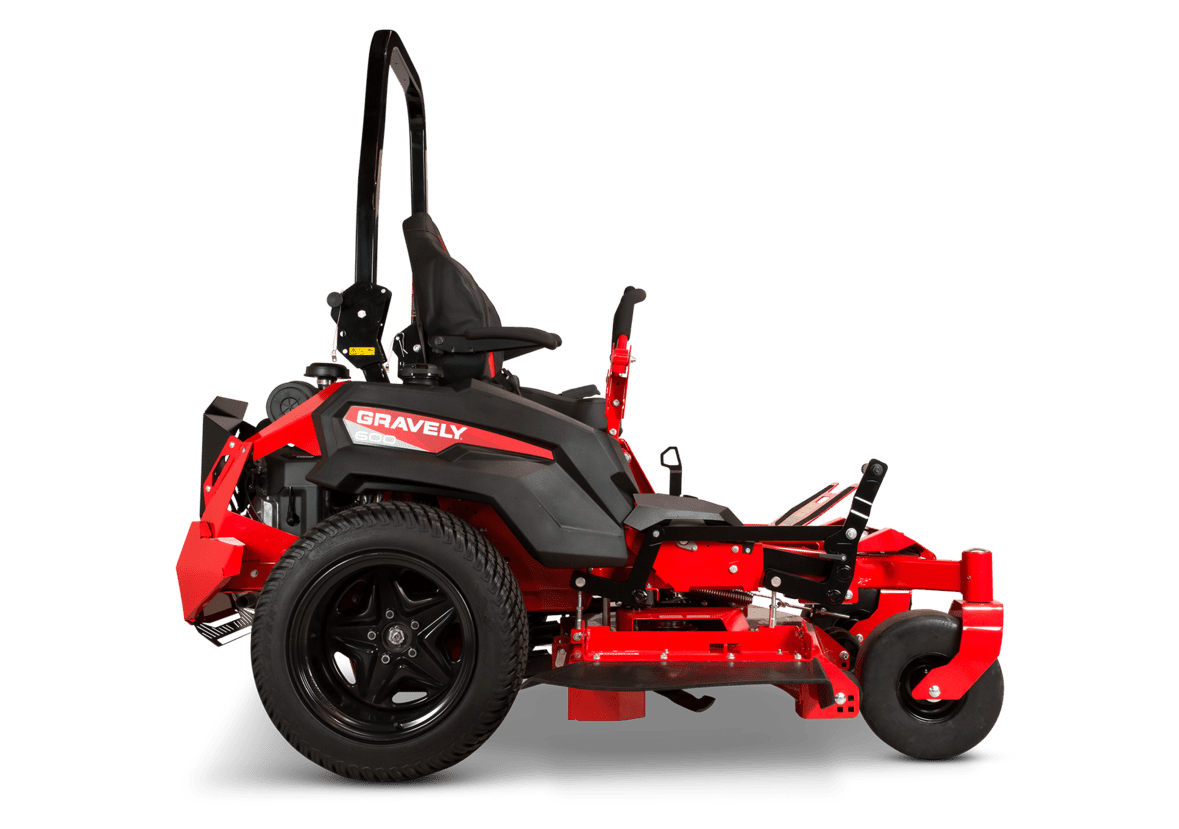

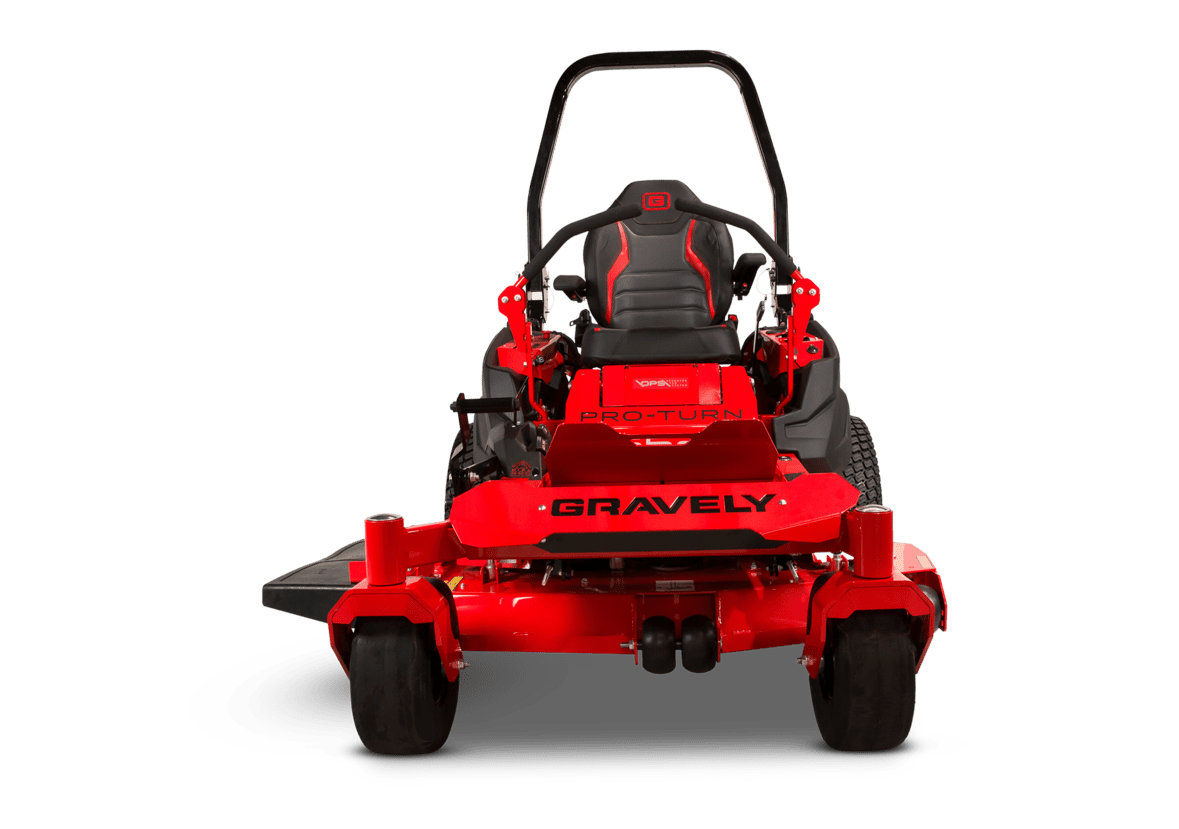

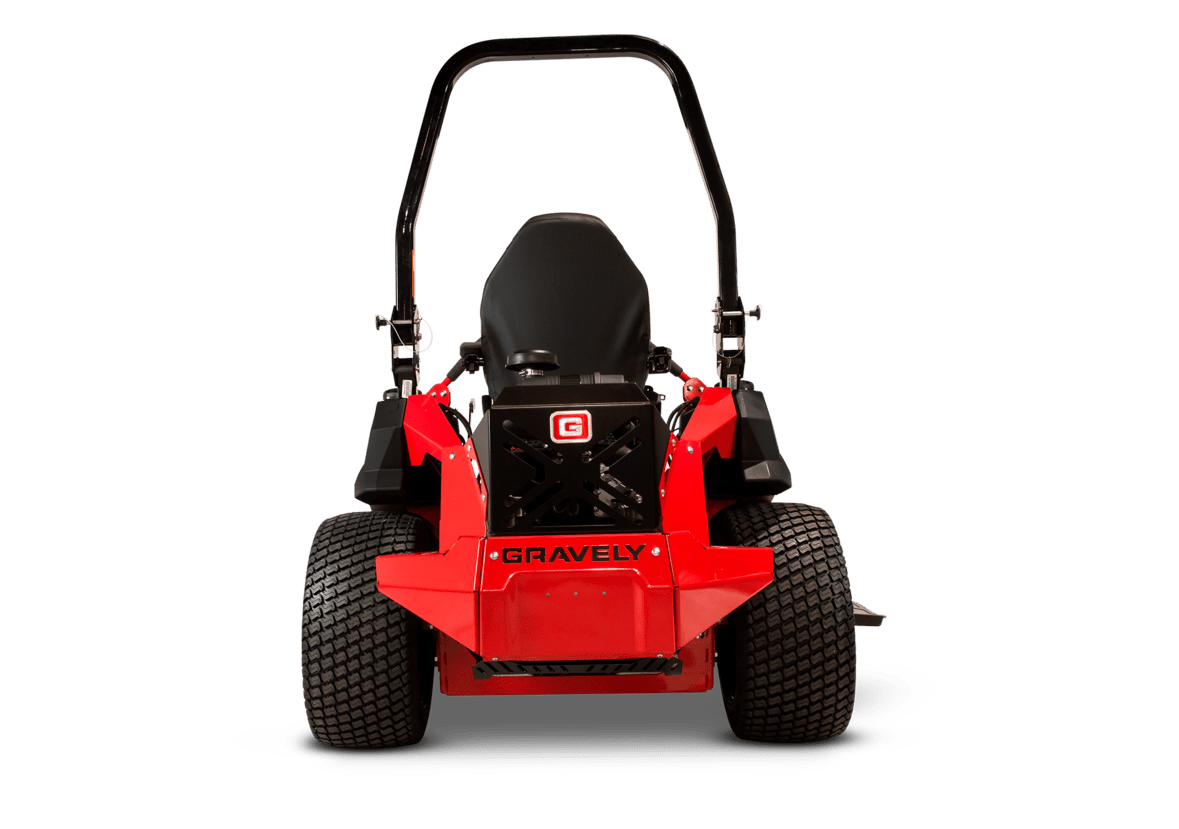

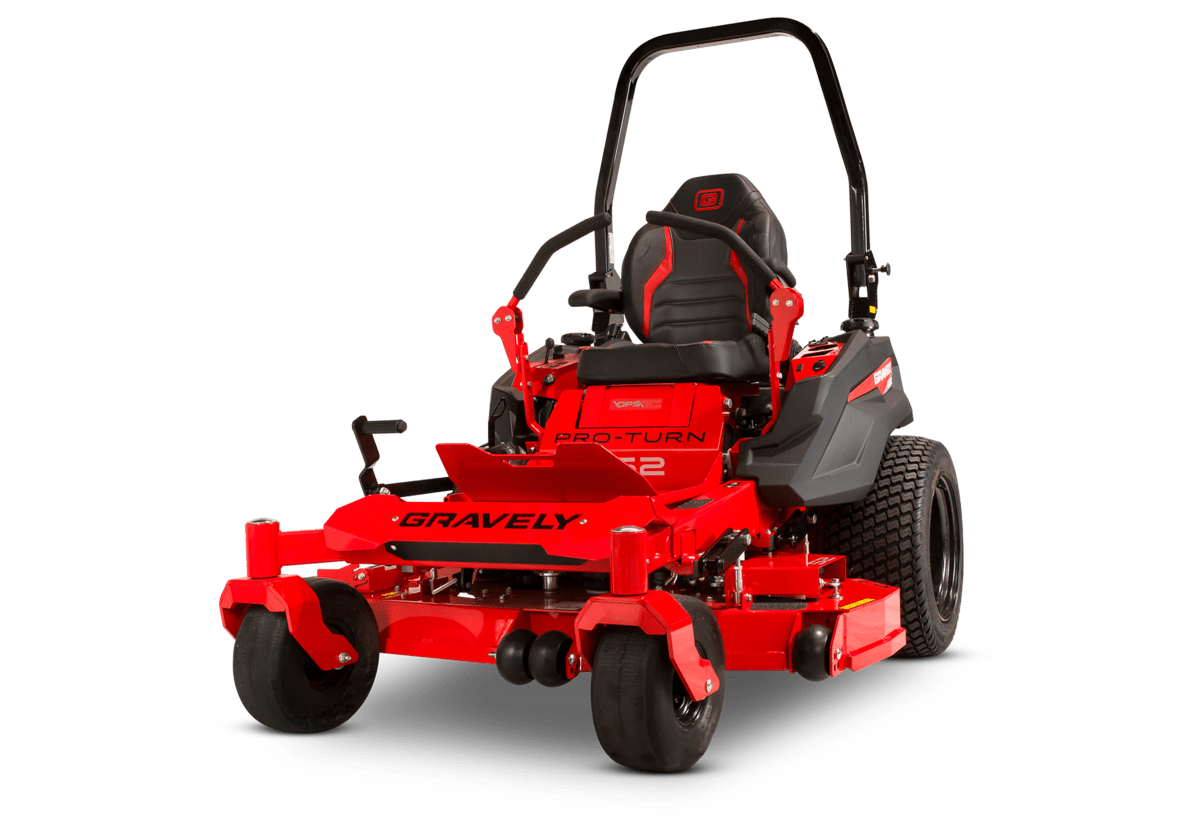

Adding our Pro-Turn 652 to your crew is like adding a new employee to your team. This unit cuts fast and more efficiently, handling more work in less time. Gliding over grass with ease, this mower is the best of the best.
Its X-Factor 3 Deck has been completely redesigned for improved grass dispersion. This deck is constructed from 7-gauge steel to deliver years of solid performance. Both the front and rear tires of the Pro-Turn mower provide a smoother ride and more traction across varying conditions. There’s nothing like it in the industry. Impress your mates with this high quality unit.
Features
- A premium quality Kawasaki 27 hp FX850 V- twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners.
- PARKER HTG Dual hydrostatic transmission.
- Suspension System, makes you feel like you’re part of the machine, giving you more control and comfort by removing bumps and jolts, even while mowing at higher speeds. That means less fatigue by the end of the day. It’s also specially designed to self-
- Dial-A-Height.This lets the operator easily adjust the deck height by quarter-inch increments.
- Large diameter tires both the front and rear tires provide a smoother ride and more traction on varying conditions.
- Offers 19 cutting positions, ranging from 25.4 mm – 139.7 mm, to make your lawn look its best.
- X-FACTOR® 3 Deck. The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Forged Aluminium cutter spindles with sealed ball bearings.
Technical specifications
Warranty Information
| Domestic Warranty |
5 Year / 1500 Hour Domestic Warranty |
| Commercial Warranty |
5 Year / 1500 Hour Commercial Warranty |
| Hire/Rental Warranty |
90 Day Hire / Rental Warranty |
Miscellaneous
Dimension Specs
| Dry Weight |
696.2 kg |
| Height |
1816 mm with ROPS up, 1214 mm with ROPS down |
| Width |
1297 mm with chute up |
| Overall Length |
2108 mm |
Zero Turn Mower Specs
| Ground Speed – Forward |
Up To 24.1 km/h |
| Brakes |
Hand Park Brake |
| Seat |
High back bolstered w/ suspension pod system |
| Construction |
Frame 1" x 3" STEEL Tubular frame welded |
| Hour Meter |
Standard |
| ROPS |
Standard |
| Controls |
Hand-operated choke, throttle, ignition switch, electric mower clutch, hand park brakes |
| Cup Holder |
Yes |
| Deck System |
Fabricated X-Factor 3 |
| Deck Lift |
Foot Operated |
| Deck Construction |
Fabricated 7 Gauge with ¼” spindle reinforcement |
| Blade Tip Speed |
18,000 FPM |
| Blade Drive |
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life |
| Spindles |
Forged Aluminium with sealed ball bearings |
| Drive System |
Parker HTG 16cc Dual Hydrostatic Transmission |
| Steering |
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls |
Engine and Fuel Specs
| Engine |
Kawasaki FX850V |
| Type |
Air cooled, 90-degree V-twin, normally aspirated petrol engine |
| Engine (cc) |
852 cc |
| Horsepower |
27 hp |
| Cooling |
Air cooled flywheel fan |
| Fuel |
Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications) |
| Fuel Filter |
Replaceable, automotive-type |
| Oil Filter |
Spin-on engine oil filter / Total oil capacity 2.3 litres with filter |
| Air Filter |
Multi-Stage remote canister heavy duty air filter system |
| Fuel Capacity |
47.9 L |
| Governor |
Mechanical |
Safety Features
| Safety Features |
Operator presence system connected to clutch, seat, and park brakes |
Mowing Deck Specs
| Kit – Mulch |
Available Optional Accessory |
Hydrostatic Drive System Specs
| Hydrostatic Drive System |
Dual hydrostatic |
| Drive Cooling |
Transmission mounted fans |
| Transmission |
Parker HTG Transmission |
Cutting Dimensions
| Cutting Widths |
52" (1321 mm) side discharge |
| Cutting Height(s) |
19 Cutting positions / 25 mm – 140 mm |
