Description

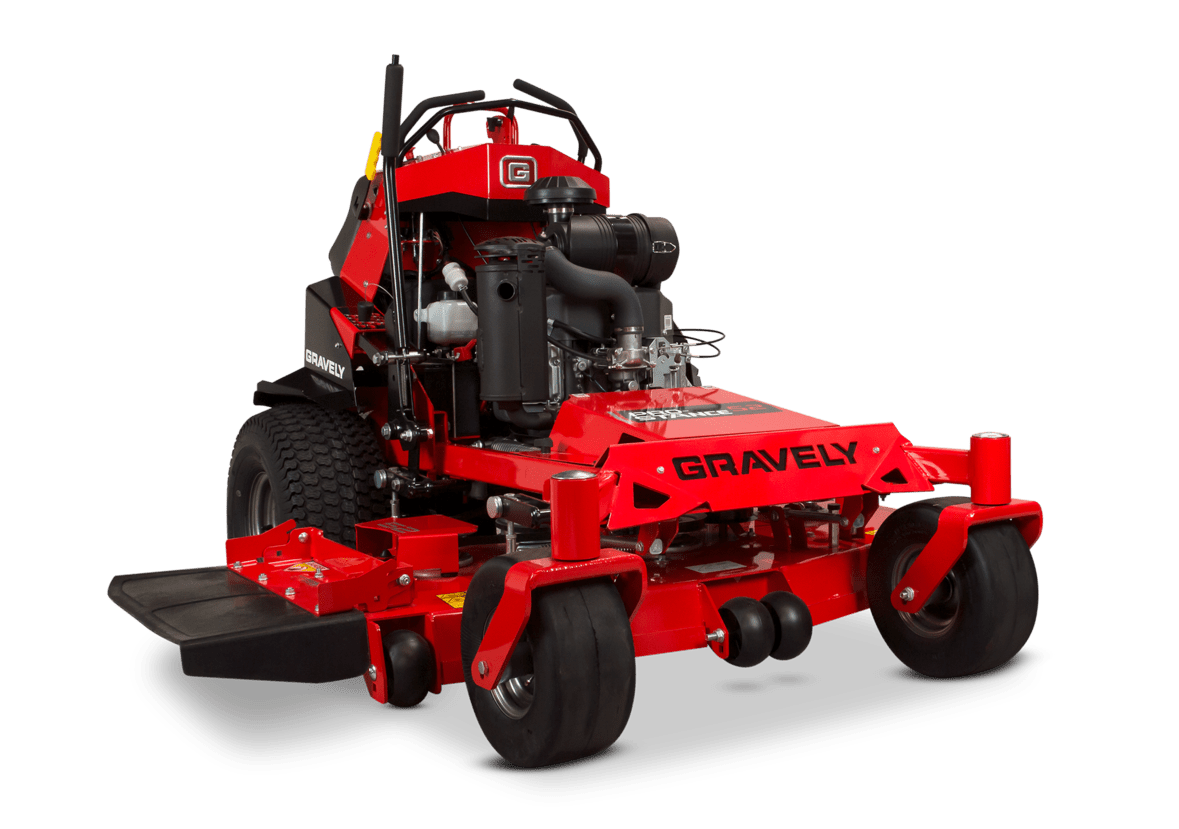

Stand-On Mowers, rugged, durable, and built to deliver an exceptional cut. Just like all Gravely commercial units, stand-on mowers give you additional flexibility. The perfect blend of power and performance for environments that demand quick
on-and-off versatility. The deck adjusts easily, and the suspension platform absorbs vibration for all-day comfort.
Features
- Kawasaki 23.5 hp FX730V premium and commercial grade V-twin engine.
- Operator comfort features exceptional operator positioning for all-day comfort.
- Added efficiency – reduced complexity gives users the freedom to make critical adjustments in just minutes.
- Adjustable Cruise Bar – allows the operator to limit and expand the unit’s maximum speed in tight working environments .
- Deck height adjustment – the dual height-adjustment system was designed with both a traditional hand lever and a foot lever to lift and adjust the deck. It’s perfect for smaller operators who may struggle with traditional hand lever lifts.
- X-FACTOR® 3 deck – the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Compact stance perfect for tight spaces.
- Offers 15 cutting positions, ranging from 38.1 mm – 127 mm.
- Shock-absorbed operator platform which responds to driver’s weight.
- Heavy-duty fabricated frame.
Technical specifications
Warranty Information
| Domestic Warranty |
5 Year / 1000 Hour Domestic Warranty |
| Commercial Warranty |
5 Year / 1000 Hour Commercial Warranty |
Miscellaneous
Dimension Specs
| Dry Weight |
460.4 kg |
| Height |
1219 mm |
| Width |
1409 mm with chute up |
| Overall Length |
1540 mm |
Zero Turn Mower Specs
| Ground Speed – Forward |
Up To 14.4 km/h |
| Brakes |
Hand-operated Park brake |
| Construction |
Frame 1" x 3" STEEL Tubular frame welded |
| ROPS |
No |
| Controls |
Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated hand brake |
| Deck System |
Fabricated 4 point lift |
| Deck Lift |
Dual deck height adjustment |
| Deck Construction |
Fabricated 7 Gauge |
| Blade Tip Speed |
18,000 FPM |
| Blade Drive |
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life |
| Spindles |
Forged Aluminium with sealed ball bearings |
| Drive System |
Hydro-Gear® ZT-3400 Transaxle |
| Discharge Chute |
High density, rubberised |
| Steering |
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls |
Engine and Fuel Specs
| Engine |
Kawasaki FX730V |
| Type |
Air cooled, 90-degree V-twin, normally aspirated petrol engine |
| Engine (cc) |
726 cc |
| Horsepower |
23.5 hp |
| Cooling |
Air cooled. Fly-wheel fan |
| Fuel |
Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications) |
| Fuel Filter |
Replaceable, automotive-type |
| Oil Filter |
Spin-on engine oil filter / Total oil capacity 2.1 litres with filter |
| Air Filter |
Dual element with reinforced primary filter |
| Fuel Capacity |
33.9 L |
| Governor |
Mechanical |
Hydrostatic Drive System Specs
| Hydrostatic Drive System |
Dual hydrostatic |
| Drive Cooling |
Transmission mounted fans |
| Drive Filter |
Yes |
Cutting Dimensions
| Cutting Widths |
52" Cut Side Discharge |
| Cutting Height(s) |
38 mm – 127 mm |
