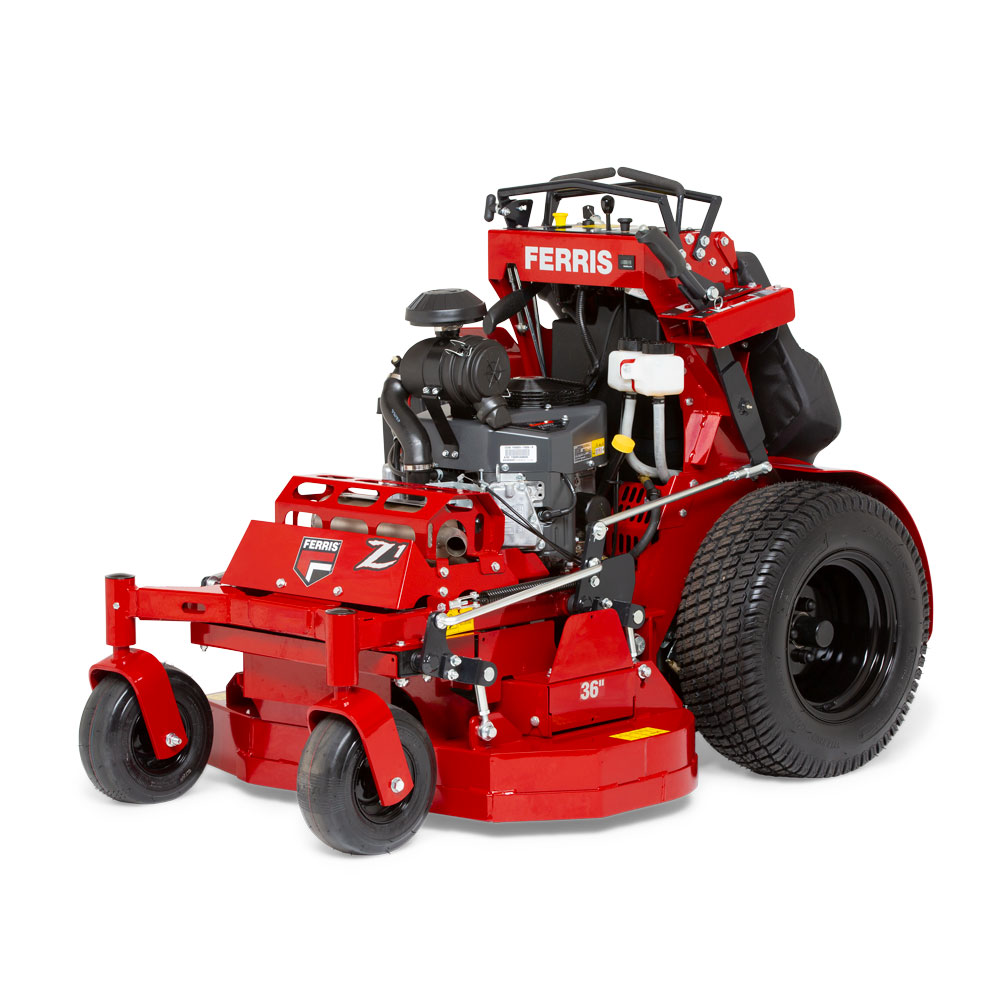

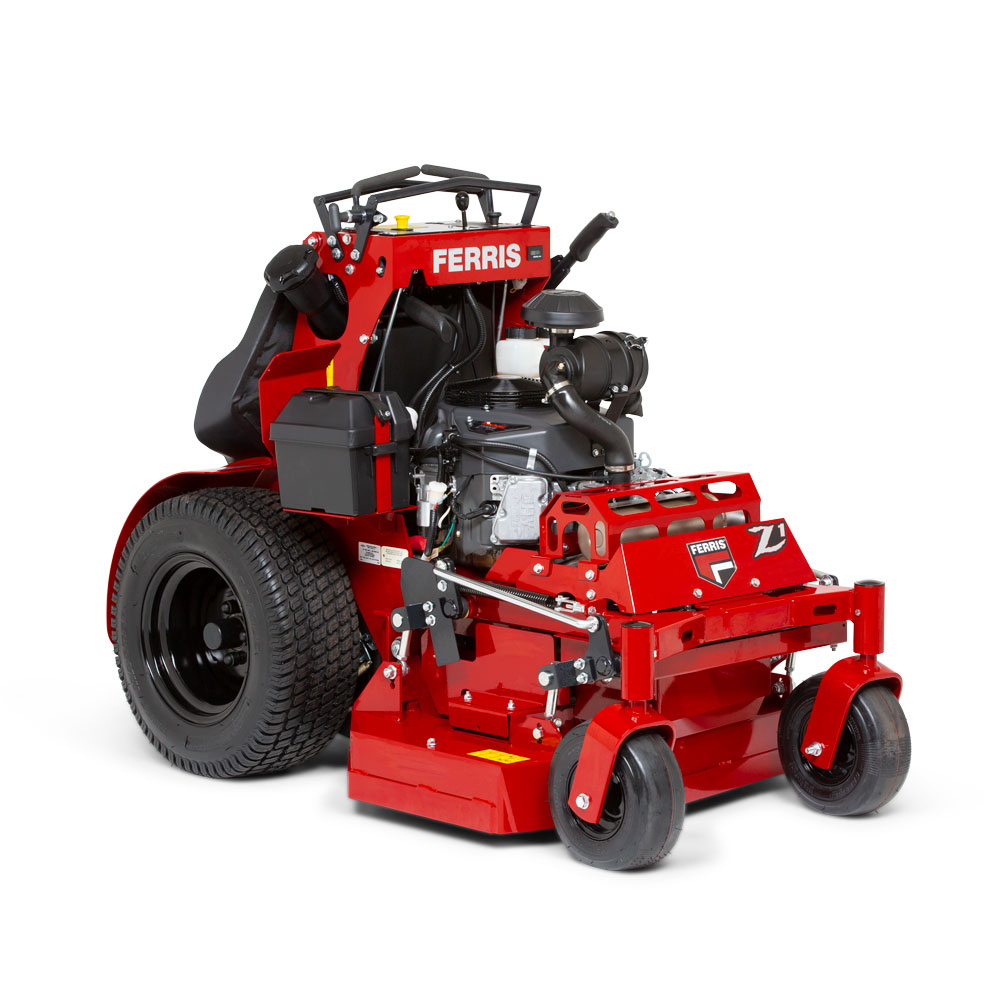

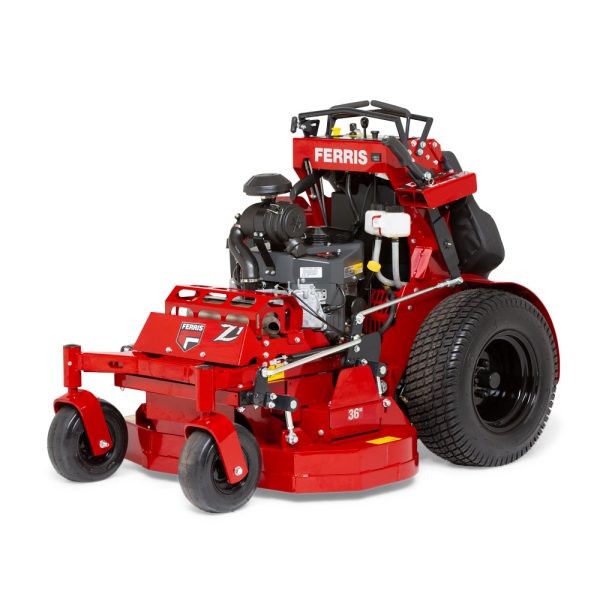

SRS™ Z1 Stand-On Mower

$16,299.00 incl GST

RIDE CONFIDENTLY INTO NARROW SPACES

The Soft Ride Stand-on SRS™ Z1 is raising the bar with adjustable operator platform, featuring suspension technology, optimising operator comfort and increasing productivity!

The superior balance provides stability and manoeuvrability that exceeds expectations for traction and handling. The SRS™ Z1 is designed to allow for quick operator exit and re-entry. Need to walk away from the mower to move an obstacle or debris? The PTO will automatically disengage when the operator leaves the platform. Restarting the blades is just as easy. When the operator steps back onto the platform and reengages the PTO switch they can continue mowing.

A rear discharge cutting deck with included mulch plug means no bulky deflector flap and no thrown objects, making the Z1 the ideal mower for domestic lots where access is limited.

SKU: 5901943 Categories: ,

Description

Part Number
5901943
Engine Brand
Kawasaki® FX600V
Engine Power Rating (HP) *
19
Displacement (cc)
603
PTO
Electric
Cylinders
2
Starter
Electric
Fuel Tank Capacity (litres)
22.7
Cutting Width in(cm)
36 (91)
Cutting Height in(cm)
1.75 – 4.5 (44 – 114)
Spindles
Aluminum greaseable
Deck Construction
10 gauge, fabricated, rear discharge
Suspension
Adjustable coil-over shock; Operator Suspension Platform
Transmission
Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in)
1.125
Caster Tyres (in)
11 x 4 – 5, Flat Free
Drive Tyres (in)
23 x 8.50 – 12
Ground Speed-Fwd (kph)
0 – 12.8
Ground Speed-Rev (kph)
0 – 6.4
Overall Length (mm)
1620
Overall Width (mm) Deflector Down / Up
920
Dry Weight (kg)
368
Seat Package
Not Available
Instrumentation
Fuel gauge, hour meter
ROPS
Not Available
Controls / Safety Group
Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart
Parking Brake / Safety Circuit
Hand-operated internal transaxle brake
Warranty (Engine) †
3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
