Description

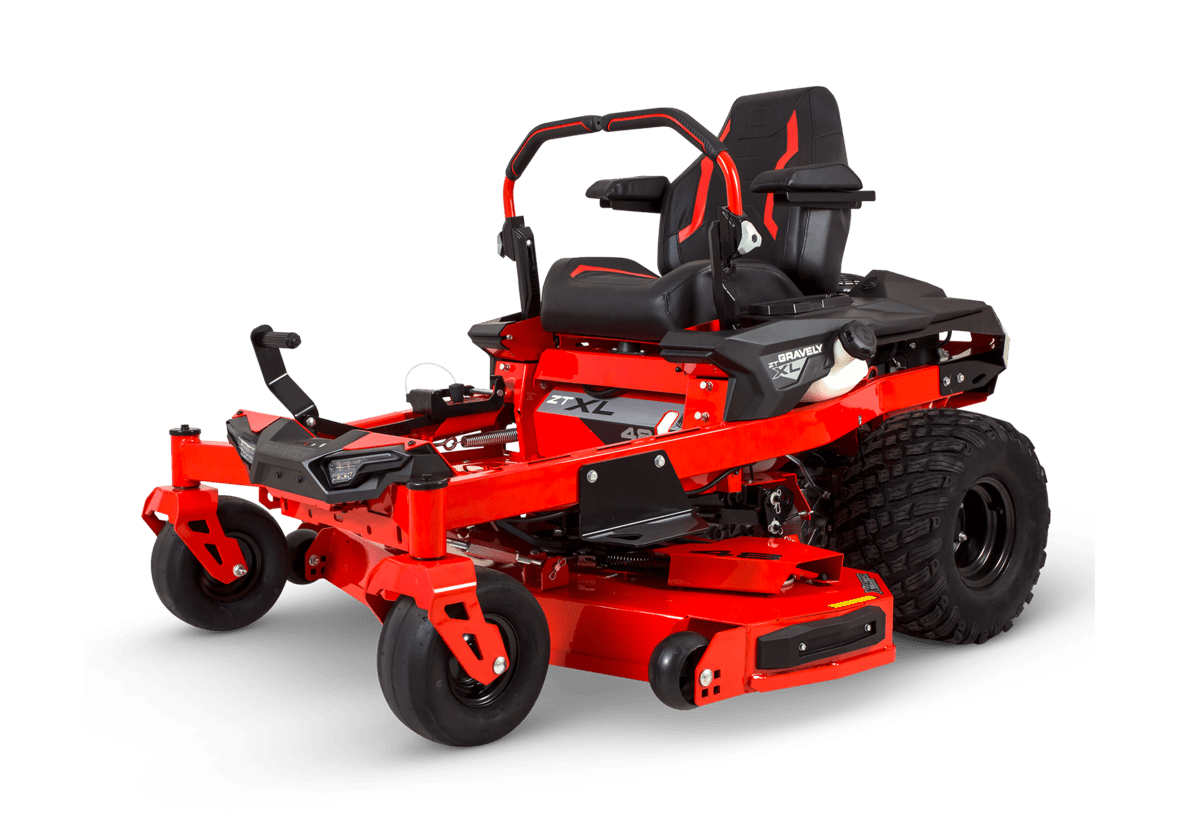

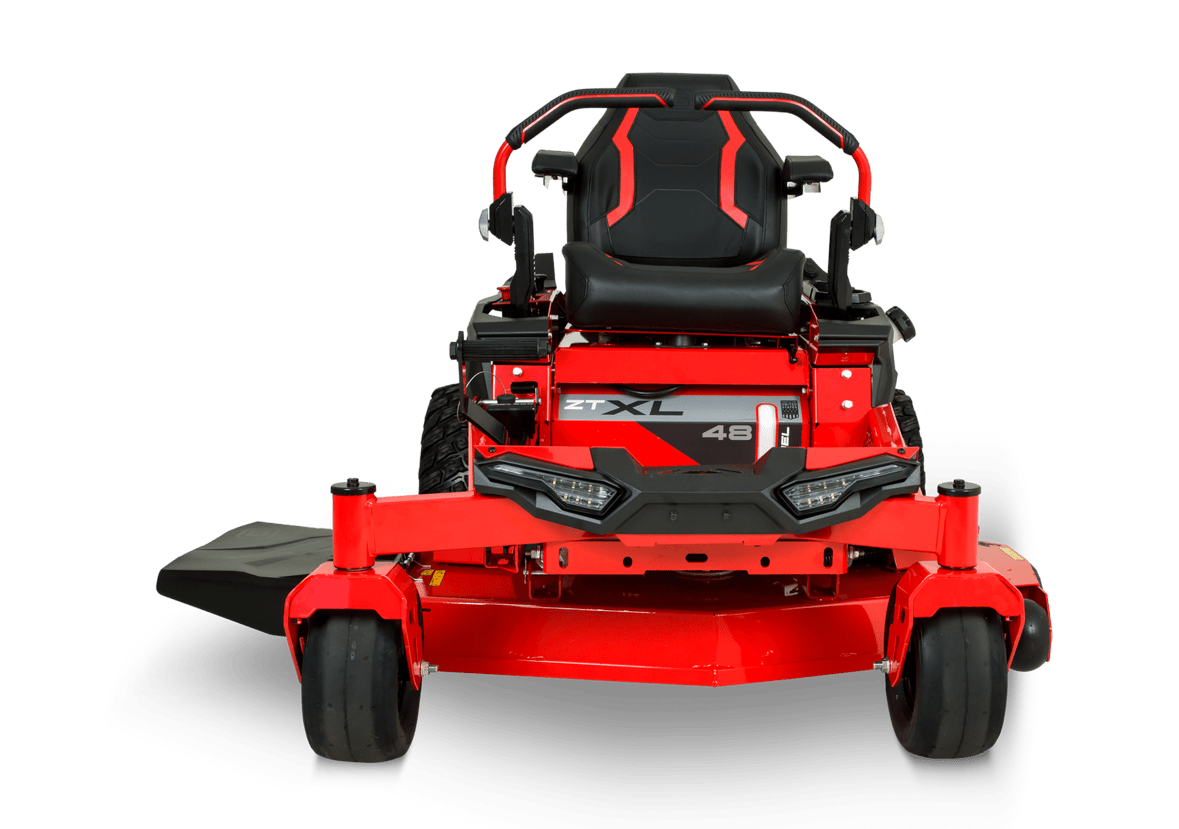

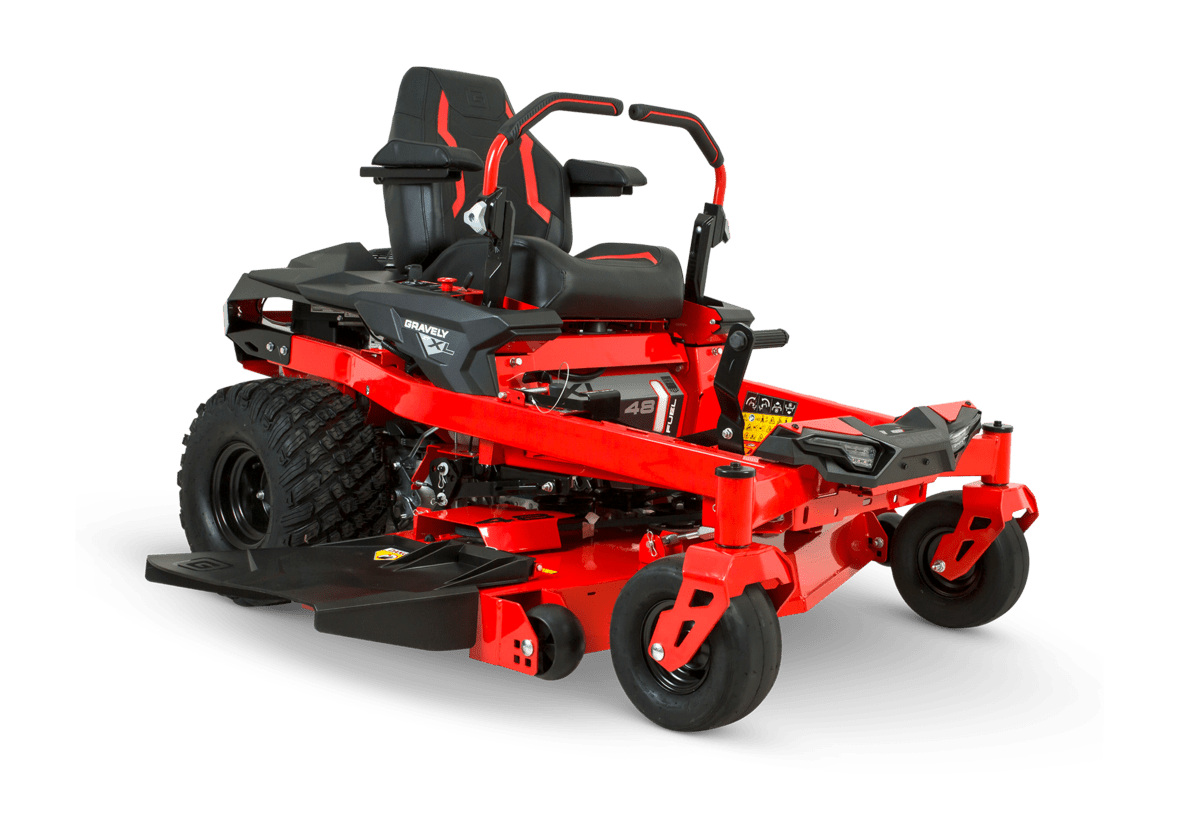

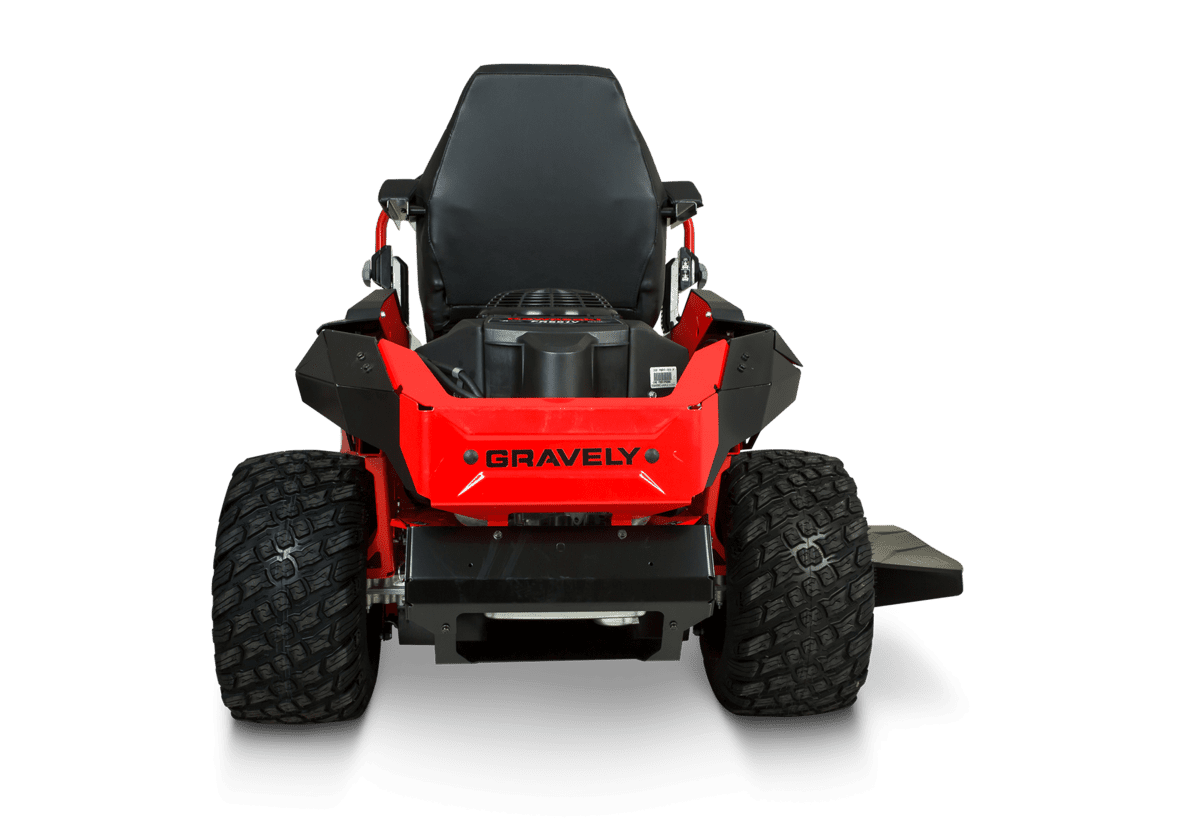

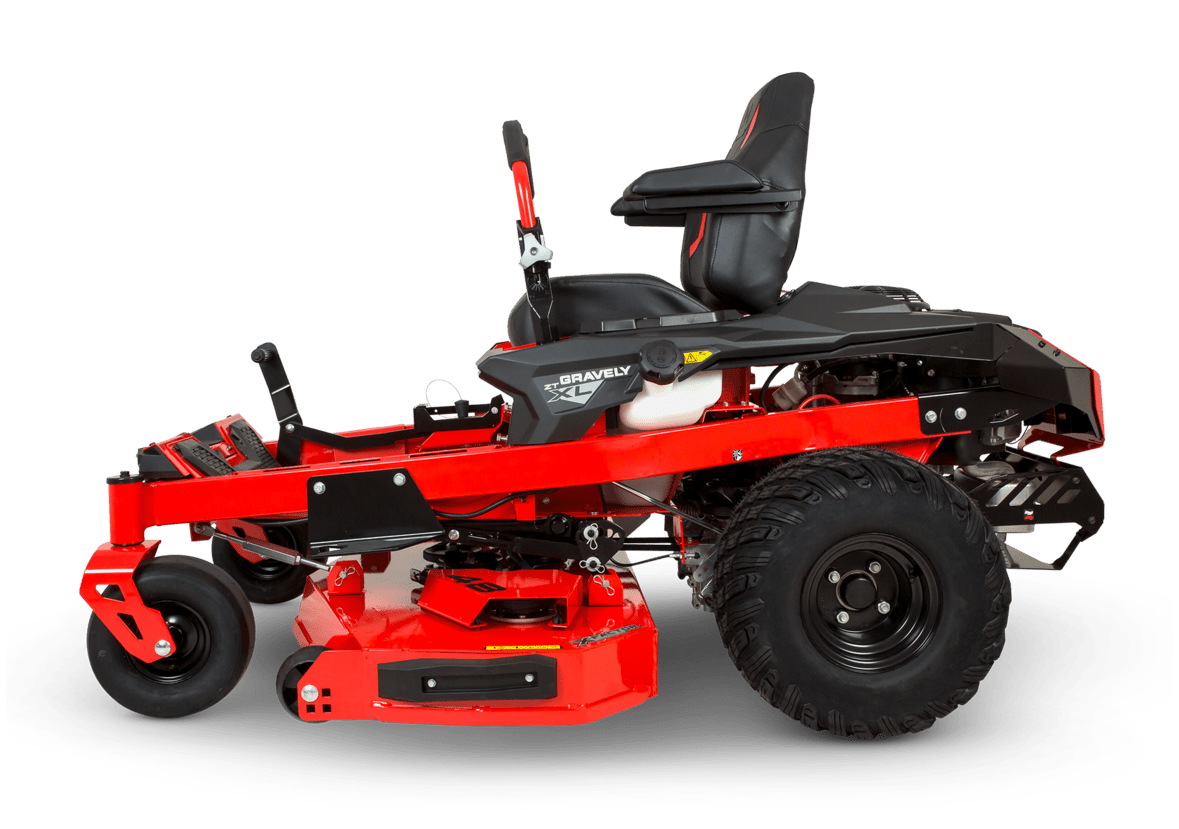

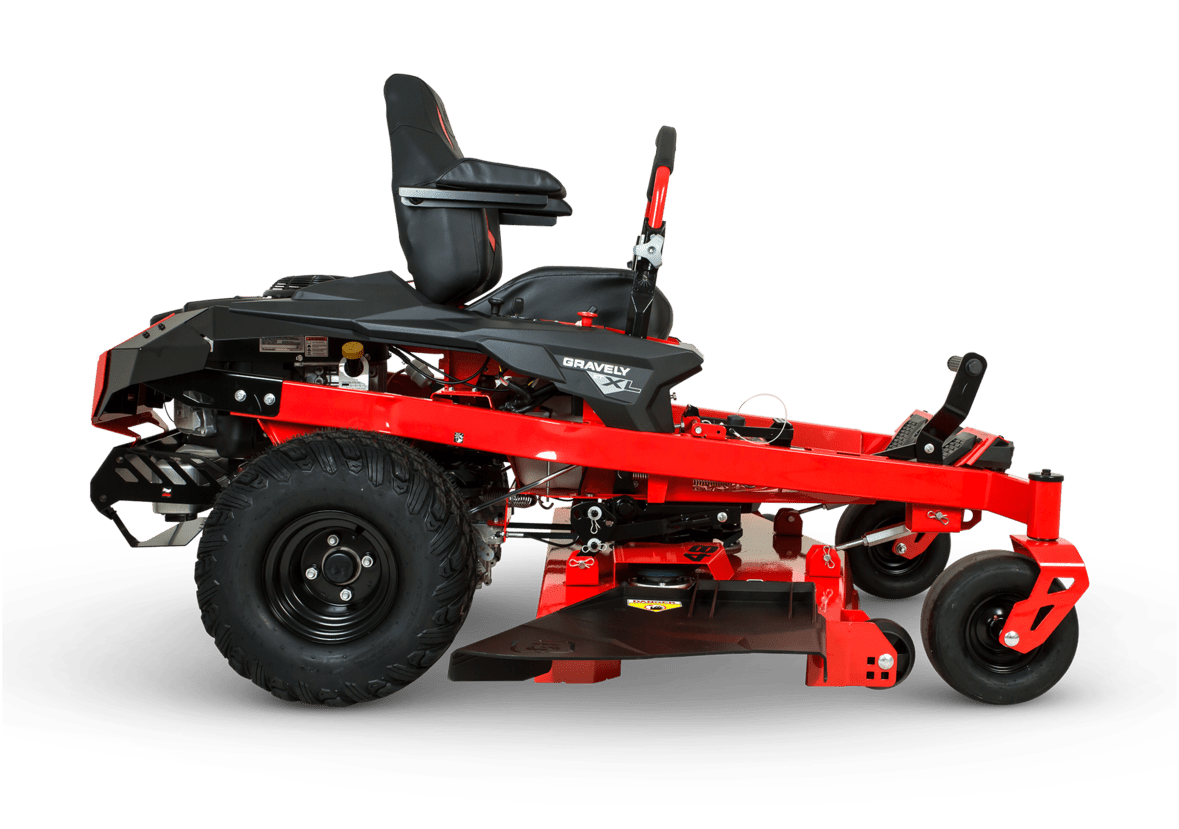

Designed with a fully welded tubular frame for a strong, stable backbone, and hydro-gear transaxles that provide increased torque, a smoother ride, and longer life. The ZT XL 48″ features a 4.5-inch deep 11-gauge fabricated desk with an optimised airflow design.
The professional grade quality of the ZT XL was built for big jobs. This is a residential machine with heavy-duty features that make users forget they’re not on a commercial mower. Designed with a Kawasaki V-Twin Engine and a 10.5 litre fuel capacity, this unit cuts big jobs down to size.
Features
- 11-Gauge Fabricated Deck.
- 4-Point Deck Lift system.
- Fully Welded Tubular Frame.
- 23 hp Kawasaki FR691 V-Twin Engine.
- 13 Cutting Positions.
- Hydrogear Transaxles.
Technical specifications
Warranty Information
| Domestic Warranty |
4 Year / 400 Hour Domestic Warranty |
| Commercial Warranty |
4 Year / 400 Hour Commercial Warranty |
Miscellaneous
Dimension Specs
| Dry Weight |
312.5 kg |
| Height |
1193 mm |
| Width |
1298mm With chute up |
| Overall Length |
1892 mm |
Zero Turn Mower Specs
| Ground Speed – Forward |
Up To 11.3 km/h |
| Brakes |
Steering Arm Integrated Park Brake |
| Seat |
Bolstered High Back Seat With Arm Rests |
| Hour Meter |
Standard |
| ROPS |
ROPS Not Supplied With Units |
| Cup Holder |
Yes |
| Deck System |
Fabricated X-Factor® |
| Deck Lift |
Foot Operated |
| Deck Construction |
11 Gauge Fabricated |
| Blade Tip Speed |
18,000 FPM |
| Spindles |
Forged Aluminium with sealed ball bearings |
| Drive System |
Hydro-Gear® ZT-2800® Transaxles |
Engine and Fuel Specs
| Engine |
Kawasaki FR691V V-Twin |
| Engine (cc) |
726 cc |
| HP |
23 hp |
| Fuel Capacity |
13.2 L |
Mowing Deck Specs
| Kit – Mulch |
Available Optional Accessory |
Cutting Dimensions
| Cutting Widths |
48″ (1219 mm) Cut Side Discharge |
| Cutting Height(s) |
13 Cutting Positions / 38 mm – 114 mm |
