Description

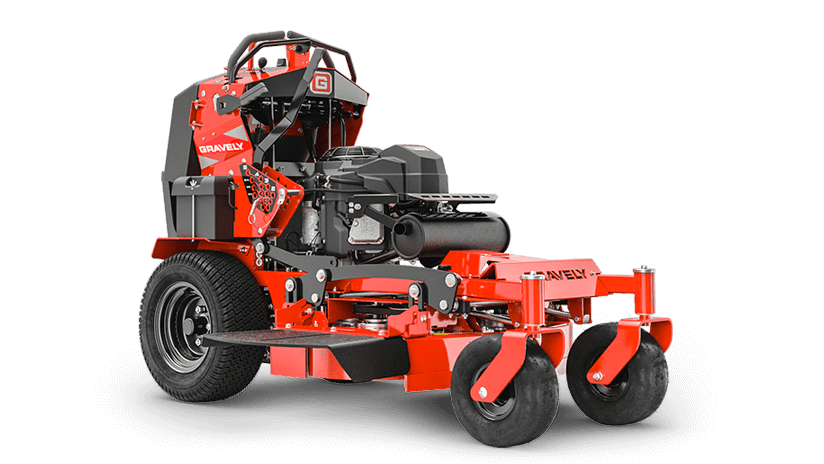

You’ll ride with pride as you deliver that perfect Gravely cut on the Z-Stance. This powerful commercial stand-on mower is easy to maneuver and a breeze to maintain. It will make quick work of a corporate campus or a gated backyard. You take a stand for comfort, ingenuity, and durability when you’re on a Z-Stance.
Features
- Kawasaki 18.5 hp FS600V premium and commercial grade V-twin engine.
- Operator comfort features exceptional operator positioning for all-day comfort.
- Added efficiency – reduced complexity gives users the freedom to make critical adjustments in just minutes.
- X-FACTOR® 2 deck – the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Compact stance perfect for tight spaces.
- Offers 15 cutting positions, ranging from 50 mm – 127 mm.
- Shock-absorbed operator platform which responds to driver’s weight.
- Heavy-duty fabricated frame.
Technical specifications
Warranty Information
| Domestic Warranty |
4 Year / 500 Hour Domestic Warranty |
| Commercial Warranty |
4 Year / 500 Hour Commercial Warranty |
Miscellaneous
Dimension Specs
| Dry Weight |
304 kg |
| Height |
1207 mm |
| Width |
851 mm with chute up |
| Overall Length |
1634 mm |
Zero Turn Mower Specs
| Ground Speed – Forward |
Up To 11.2 km/h |
| Brakes |
Hand-operated Park brake |
| Construction |
Frame 1" x 3" STEEL Tubular frame welded |
| ROPS |
No |
| Controls |
Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated hand brake |
| Deck System |
4 Point Lift Fabricated |
| Deck Lift |
Dual deck height adjustment |
| Deck Construction |
Fabricated 7 Gauge |
| Blade Tip Speed |
18,220 FPM |
| Blade Drive |
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life |
| Spindles |
Forged Aluminium with sealed ball bearings |
| Drive System |
Hydro-Gear® ZT-3100 Transaxle |
| Discharge Chute |
High density, rubberised |
| Steering |
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls |
Engine and Fuel Specs
| Engine |
Kawasaki FS600V |
| Type |
Air cooled, 90-degree V-twin, normally aspirated petrol engine |
| Engine (cc) |
603 cc |
| Horsepower |
18.5 hp |
| Cooling |
Air cooled. Fly-wheel fan |
| Fuel |
Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications) |
| Fuel Filter |
Replaceable, automotive-type |
| Oil Filter |
Spin-on engine oil filter / Total oil capacity 1.7 litres with filter |
| Air Filter |
Dual element with reinforced primary filter |
| Fuel Capacity |
17 L |
| Governor |
Mechanical |
Hydrostatic Drive System Specs
| Hydrostatic Drive System |
Dual hydrostatic |
| Drive Cooling |
Transmission mounted fans |
| Drive Filter |
Yes |
| Pumps |
Hydro-Gear ZT-3100 |
Cutting Dimensions
| Cutting Widths |
32" Cut Side Discharge |
| Cutting Height(s) |
50 mm – 127 mm |
