Description

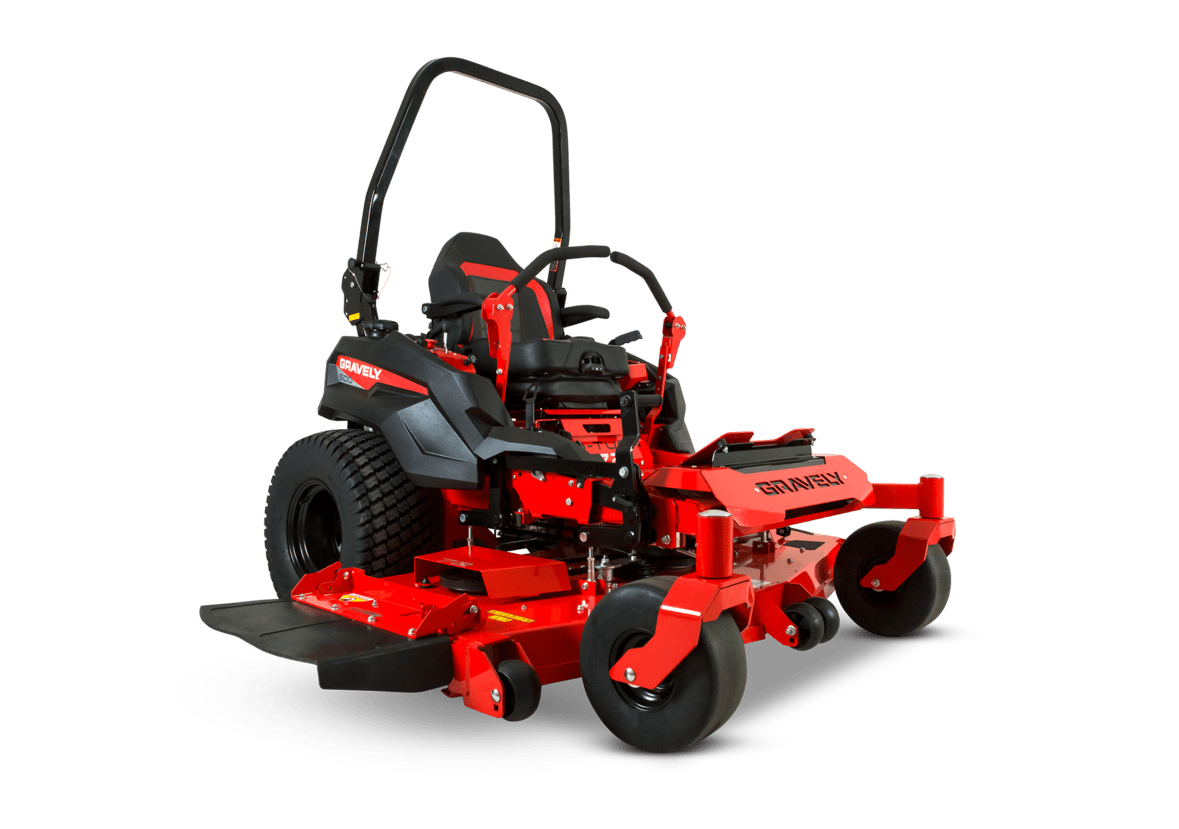

This is the Pro-Turn 500!!
A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the PRO-TURN-500 the better choice.
Features
- A premium quality 38.5 hp Kawasaki FX1000 EFI V-twin engine featuring a multi-stage remote canister heavy duty air filter system and cast-iron cylinder liners.
- PARKER HTG Transaxles 16cc pumps.
- Air Ride Suspension seat is adjustable and has the new addition of a low-profile seat mechanism for added comfort.
- Fully welded tubular frame. One glance and you can see its strength and ruggedness. Its wide front rail distributes weight for superior balance. Also supports the deck lift for easy engagement. Includes a limited lifetime warranty.
- Offers 19 cutting positions, ranging from 25 mm – 140 mm, to make your lawn look its best.
- Foot-Operated deck lift.
- X-FACTOR® 3 deck The deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
- Forged Aluminium cutter spindles with sealed ball bearings.
Technical specifications
Warranty Information
| Domestic Warranty |
5 Year / 1500 Hour Domestic Warranty |
| Commercial Warranty |
5 Year / 1500 Hour Commercial Warranty |
| Hire/Rental Warranty |
90 Day Hire / Rental Warranty |
Miscellaneous
Dimension Specs
| Dry Weight |
716.6 kg |
| Height |
1930 mm ROPS up, 1214 mm ROPS down |
| Width |
1905 mm With chute up |
| Overall Length |
2133 mm |
Zero Turn Mower Specs
| Ground Speed – Forward |
Up To 24.1 km/h |
| Ground Speed – Reverse |
Up to 9.6 km/h |
| Brakes |
Hand brake |
| Seat |
High back comfort with Air Ride suspension and padded armrests |
| Construction |
STEEL Tubular frame welded |
| Hour Meter |
Standard |
| ROPS |
Foldable ROPS Standard |
| Controls |
Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes |
| Cup Holder |
Yes |
| Deck System |
X-Factor® 3 Fabricated |
| Deck Lift |
Foot-operated |
| Deck Construction |
Fabricated 7 Gauge w' 1/4" Spindle Reinforcement |
| Blade Tip Speed |
18000 FPM |
| Blade Drive |
V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life |
| Spindles |
Forged Aluminium with sealed ball bearings |
| Drive System |
Parker HTG 16cc Dual Hydrostatic Transmission |
| Discharge Chute |
High density, rubberised |
| Steering |
Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls. |
Engine and Fuel Specs
| Engine |
Kawasaki FX1000V EFI |
| Type |
Air cooled, 90-degree V-twin, EFI engine |
| Engine (cc) |
999 cc |
| Horsepower |
38.5 hp |
| Cooling |
Air cooled flywheel fan |
| Fuel |
Unleaded fuel – maximum of 10% ethanol in fuel (see engine manufacturers specifications) |
| Fuel Filter |
Replaceable, automotive-type |
| Oil Filter |
Spin-on engine oil filter / Total oil capacity 1.9 litres with filter |
| Air Filter |
Multi-Stage remote canister heavy duty air filter system |
| Fuel Capacity |
47.3 L |
| Governor |
EFI |
Safety Features
| Safety Features |
Operator presence system connected to clutch, seat, and park brakes |
Hydrostatic Drive System Specs
| Drive Cooling |
Transmission mounted fans |
Cutting Dimensions
| Cutting Widths |
72" (1828.8 mm) cut side discharge. |
| Cutting Height(s) |
25 mm – 140 mm |
