Description

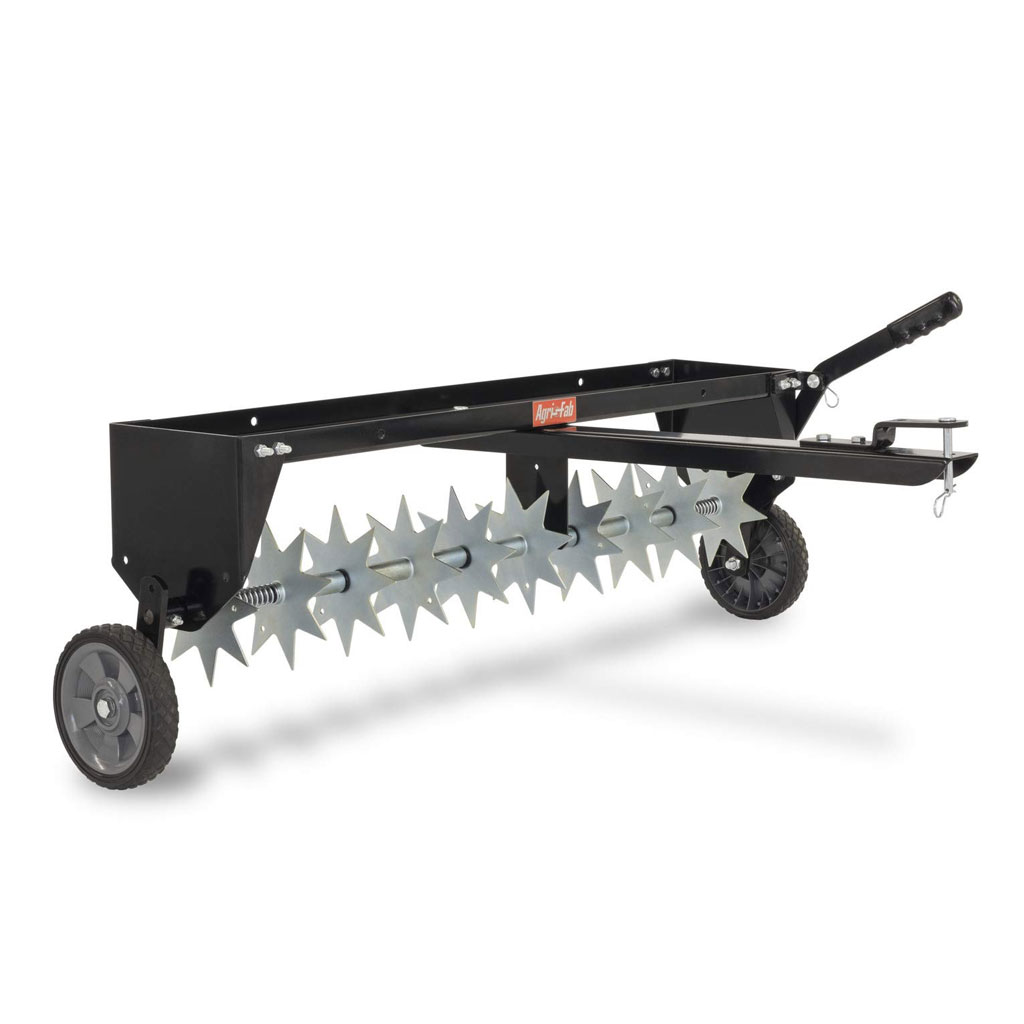

- Description: Agri-Fab 40″ (1016 mm) Tow-Behind Spike Aerator
- Editorial: Aerate compacted soil to promote new grass growth and enjoy a golf course like
- lawn. Ideal for use with many brands of lawn tractor type ride-on lawn mowers
- including but not limited to selected Cox, Craftsman, Dixon, Greenfield, Husqvarna,
- John Deere, Jonsered, McCulloch, MTD, Murray, Poulan Pro and Rover ride-on lawn
- mower models etc. Aerates by slicing the soil to create small reservoirs that will
- bring oxygen, fertilizer and water down into the roots. For best aerator
- performance, the following lawn preparations and operating procedures are
- recommended.
- OPERATION: CAUTION: POINTS OF AERATOR KNIVES ARE SHARP! EXERCISE CAUTION AT ALL
- TIMES WHILE USING THE AERATOR.
- 1. Mow lawn and remove loose clippings prior to use of lawn aerator.
- 2. Start the lawn tractor engine with controls in neutral and place throttle at a
- slow engine speed.
- 3. Engage shift lever at the lowest possible forward speed and lower aerator,
- allowing spike points to enter the ground. Increase speed as conditions permit.
- 4. Aerate in the straightest line possible, making overlapping passes to increase
- density of the spike point pattern.
- 5. Avoid extremely sharp turns with spike points engaged in ground to prevent
- damage to lawn.
- 6. DO NOT cross over foot paths or drive ways without first raising the aerator.
- 7. On sloped lawns, always aerate in an up and down direction. DO NOT attempt to
- follow the contour of the ground.
- 8. To increase the depth of point penetration, up to 100 lb (45.35 Kg) of weight,
- such as bags of sand or concrete blocks, may be added to the tray. The weight can
- be secured to the tray with ties or straps fastened to the front and rear of the
- tray. Fasten so that the ties or straps cannot become entangled on rotating parts.
- 9. If the ground is extremely hard and dry, it is recommended that it be sprinkled
- or watered down for one or two hours prior to aerating.
- 10. DO NOT attempt to aerate if ground is too wet, (muddy).
- Replaces OEM: Agri-Fab 45-0544
- Carton Size: (inches) 44.4″ x 11.5″ x 13.9″ (L x W x H)
- Carton Size: (mm) 1127.76 mm x 292.1 mm x 353.06 mm (L x W x H)
- Height: (inches) 18″
- Height: (mm) 457.2 mm
- Length: (inches) 31″
- Length: (mm) 787.4 mm
- Weight: 45 lbs. (20.41 kg)
- Width: (inches) 48″
- Width: (mm) 1219.2 mm
- Wheel(s): Flat free type
- Tread Pattern: Diamond
- Fits: Ideal for use with many brands of lawn tractor type ride-on lawn mowers including
- but not limited to selected Cox, Craftsman Garden series, Lawn Series, Professional
- Series and Yard Series, Dixon D series, Greenfield, Husqvarna CTH, GTH, LR, LT,
- LTH, YTH, TC and TS series, John Deere CR, D100, L, LT, LX and X series, Jonsered
- GT, LGT and YT series, McCulloch, MTD Yard Machines and Yard-Man series, Murray,
- Poulan Pro PP series and Rover etc. lawn tractor type ride-on lawn mower models.
- Features: Ten x 7″ (254 mm) diameter spikes penetrate the soil up to 2.5″ (63.5 mm) deep.
- Spikes are manufactured from 12 gauge steel.
- For increased soil penetration up to 100 lb (45.35 kg) of weight can be added to
- the 40″ wide weight tray.
- Scratch resistant powder coat finish.
- Folding tongue for easy storage.
- Flat free tyres for smooth transport.
- Standard Pack Quantity: 1
- Please Note: Required tow hitch height is between 7″ to 12″ (178 mm to 304 mm)
- Recommended towing speed 3 mph (4.82 kph), do not exceed 6 mph (9.6 kph).
- Due to idle speeds (ground speed) this aerator is designed for use with lawn
- tractors and is not for use with ZTR’s or four wheelers.
- Additional weight of up to 100 lb (43.5 Kg), such as bags of sand or concrete
- blocks, can be placed on the tray to increase depth of point penetration. Always
- secure weight to the tray with ties or straps fastened to the front and rear of the
- tray. Fasten so that the ties cannot become entangled in rotating parts.
- If the ground is extremely hard and dry, it is recommended that it be sprinkled or
- watered down for one or two hours prior to aerating.
- Brand: Agri-Fab
- Product Line: Aerator – Spike Type, Spike Aerator,
