Description

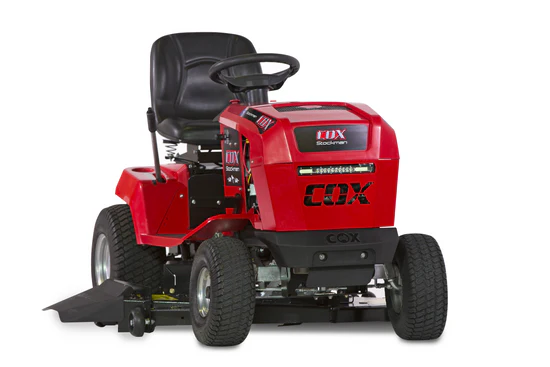

Stockman B&S 17.5hp 32″ Specifications
| ENGINE | |
| CTH17B32 | B&S 17.5hp 32″ Hydro Electric Clutch PTO |
| Cylinders | Single |
| Displacement | 500cc/550cc |
| Engine Warranty | 2 Years B&S Covered / 3 Years COX Covered |
| DRIVE | |
| Drive Type | Hydrostatic Transaxle / Optional Auto Drift Lock |
| Drive Model | Tuff Torq™ K46 / Tuff Torq™ EH |
| Drive Warranty | 2 Years Conditional |
| Ground Speed | FWD 0-10KPH/REV 0-6KPH |
| CUTTING SYSTEM | |
| Cutter Deck Width | 32″ (805mm) / 40″ (1016mm) |
| Blade Engagement | Ogura Electromagnetic Clutch |
| Cutter Belt Type | Premium B-Section |
| Height Range | 20mm-75mm (45-100mm Optional High Cut Kit) |
| Blade Type | Heavy Duty Swing Back |
| CHASSIS | |
| Tyres | 15×6.00-6 (F) – 18×8.5-8 (R) |
| Headlight | LED |
| Seat | Premium High Back Seat With Springs |
| Seat Adjustment | Fingertip Adjustment |
| Hour Meter | Standard |
| Construction | Fabricated Steel |
| Steering Wheel | Premium Steering Wheel |
| DIMENSIONS | |
| Length | 1805mm |
| Width | 805mm / 1250mm |
| Weight | 189kg / 206kg |
| Warranty | 5 Years Conditional |
