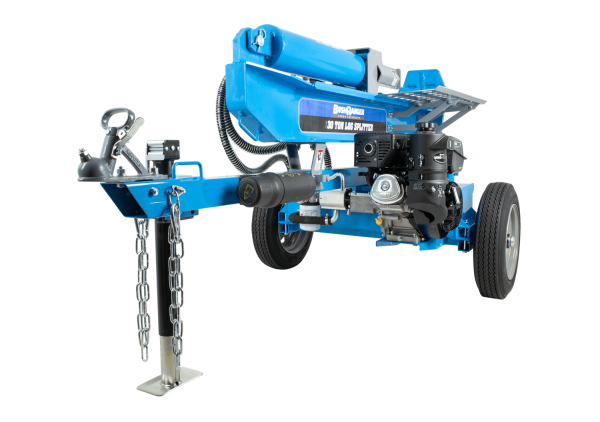

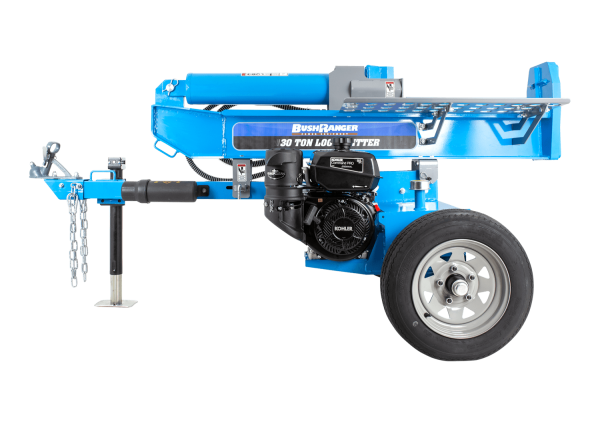

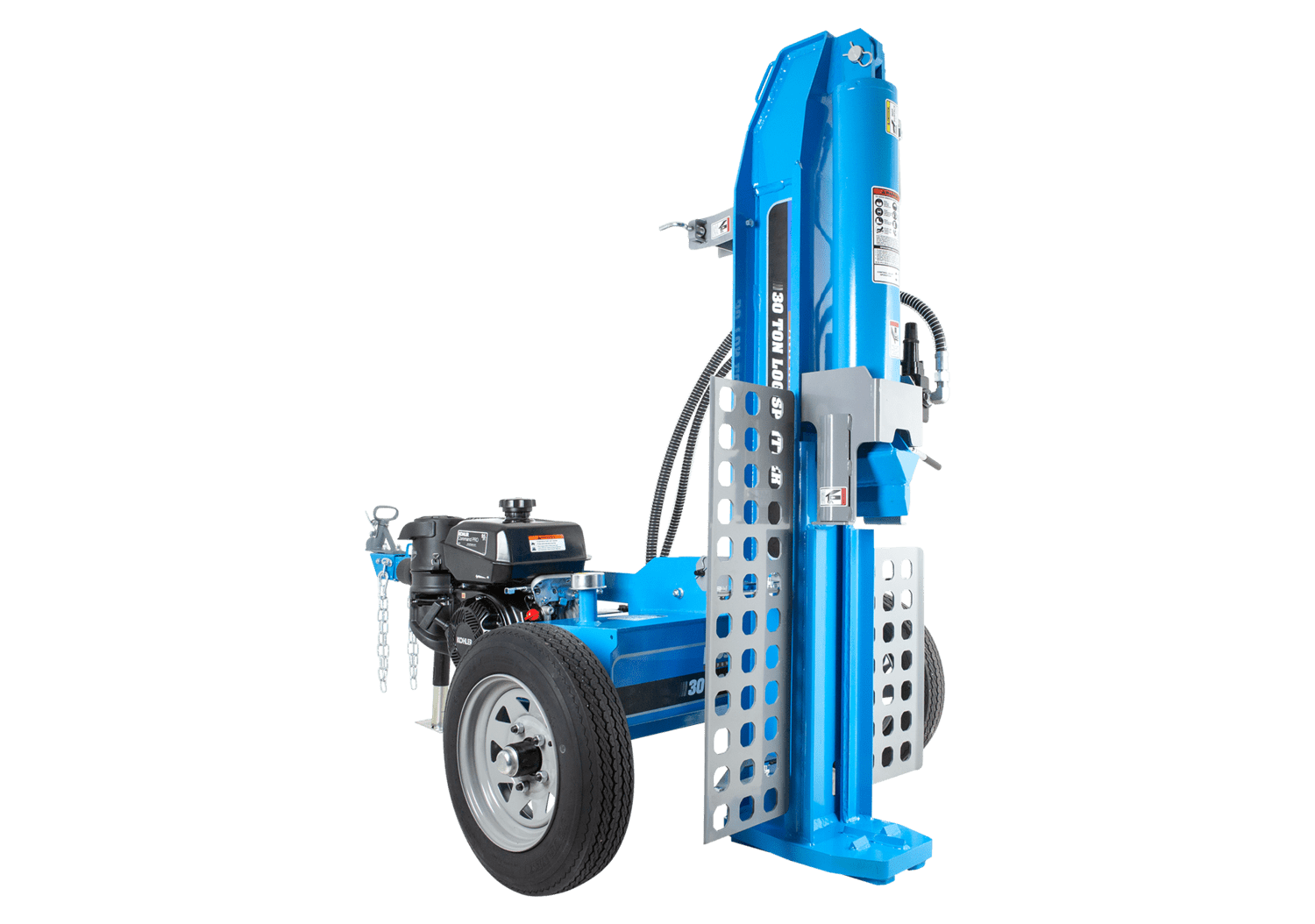

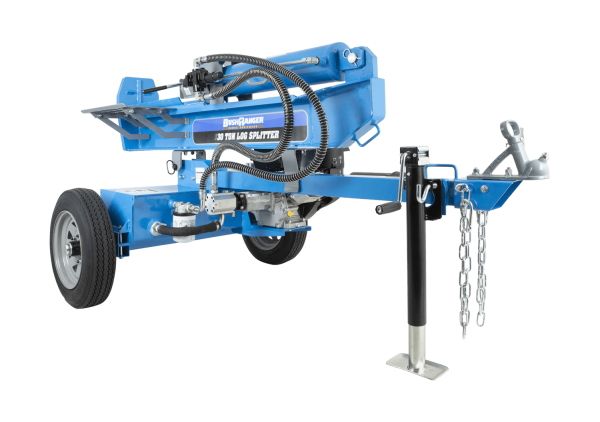

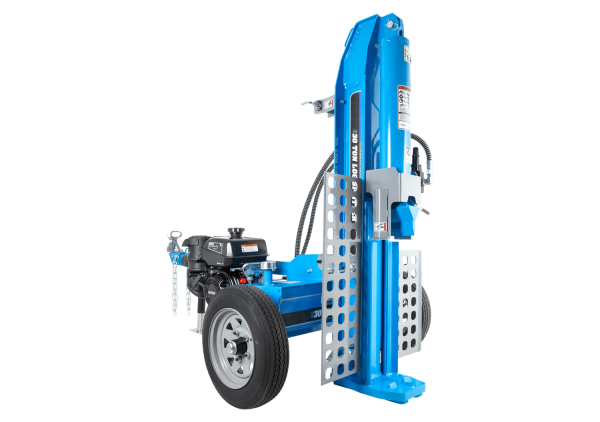

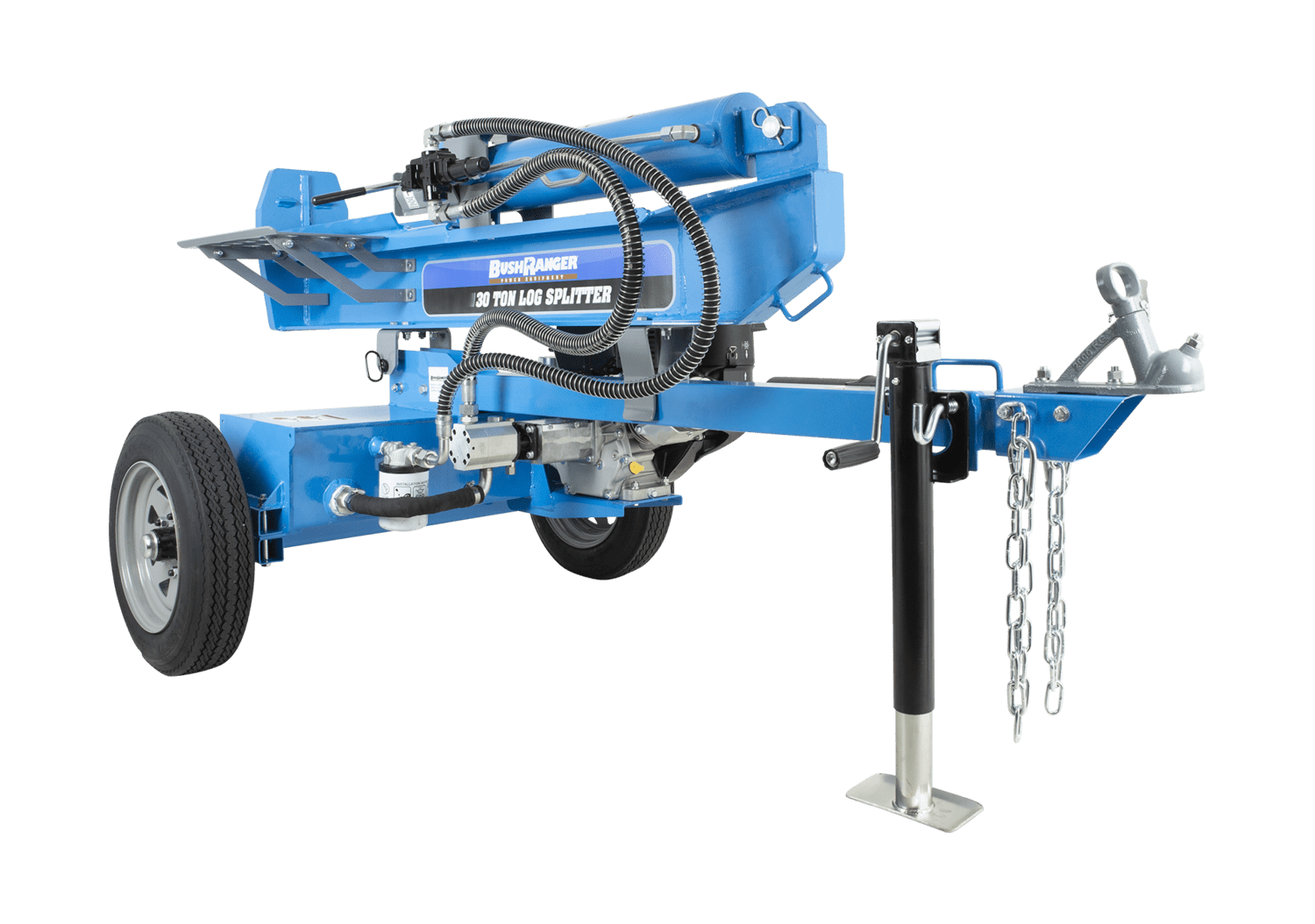

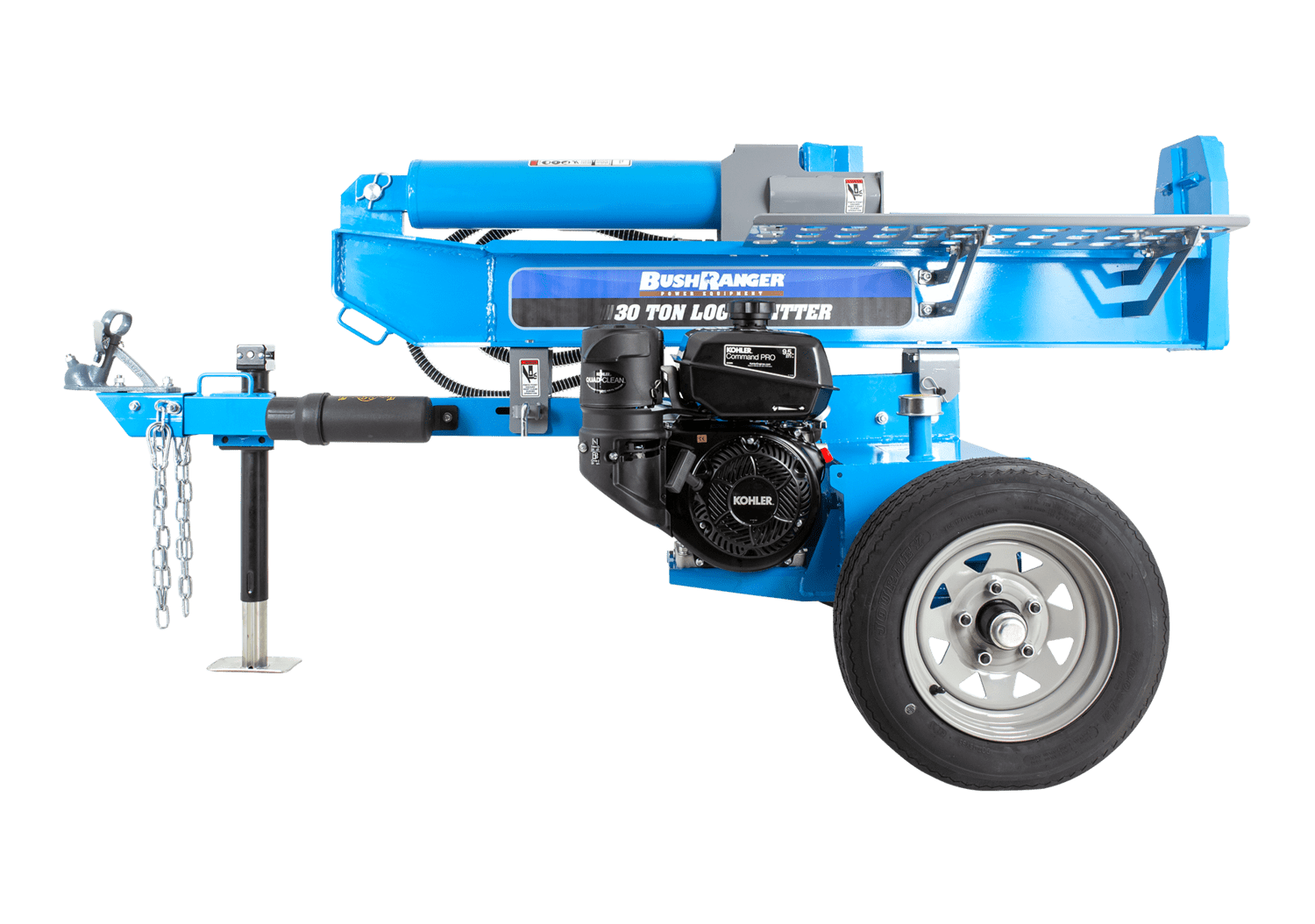

Bushranger LS302 30 Ton Log Splitter

$3,599.00 incl GST

  • KOHLER Command PRO CH395 single cylinder OHV (9.5 hp / 6.8 kW / 277 cc) engine.
  • Horizontal or vertical operation.
  • 30 Tons of splitting force.
  • Manually activated auto return valve with adjustable detent.
  • Cycle time, down and back 12.9 seconds.
  • Two stage pump 15 GPM (56.78 litres per minute).
  • Valve – Ergonomically positioned for operator comfort.
  • Wedge: 9″ (228.6 mm) High angled heat treated steel.
  • Wheels / Tyres*: 4.80″ x 12″ D.O.T certified.
  • Beam: 9″ (228.6 mm) Foot plate.
Category:

Description

  • Domestic Warranty

    3 Year Domestic (Limited) Warranty

  • Commercial Warranty

    3 Month Commercial Warranty

  • Hire/Rental Warranty

    3 Month Hire/Rental Warranty

  • Engine (cc)

    277 cc

  • Engine

    KOHLER Command PRO CH395 (9.5 hp / 6.8 kw / 277 cc) horizontal shaft engine

  • Horsepower

    9.5 hp

  • Hydraulic Ram Cylinder: (mm)

    Outside: 139.7 mm x 609.6 mm stroke / Inside: 127mm x 622.3 mm stroke

  • Hydraulic Tank Capacity: (L)

    50 litres [Hydraulic system including hydraulic tank]

  • Maximum Log Length: (mm)

    635 mm

  • Pump: (L)

    Two stage pump 56.78 litres per minute

  • Shipping Weight: (kg)

    249.47 kgs (with fluids)

  • Tow Hitch: (mm)

    50 mm ball hitch with safety chains – Aust style trailer bail hitch

  • Wedge: (mm)

    228.6 mm High angled heat treated steel

  • Operating Position

    Horizontal or vertical operation

  • Valve

    Manually activated auto return valve with adjustable detent

  • Cycle Time

    12.9 seconds (down and back)

  • Wheels / Tyres

    *D.O.T approved 12″ x 4.80″ multi lug trailer wheel

  • Beam (mm)

    9″ Foot plate

  • Ram Size

    2″ (50.8 mm) Dia
